Preci - Tech Hard Steel Mandrels
|
Diameter Range 3.05-3.81 mm (.120"-.150") |
Diameter mm |
Ins |
Mandrel Adaptor |
Stone
Types |
|

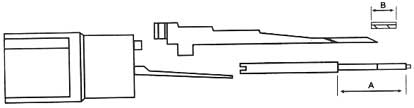

SHORT
SERIES Y
Mandrel
Length A=38 mm (1.50") Stone Length B = 14.5mm (.562") |
|
| |
| 3.05-3.17 |
.120-.125 |
HS120 |
MA 156/22
|
Y |
| 3.17-3.30 |
.125-.130 |
HS125 |
| 3.30-3.43 |
.130-.135 |
HS130 |
| 3.43-3.56 |
.135-.140 |
HS135 |
A-4/6 |
| 3.56-3.68 |
.140-.145 |
HS140 |
| 3.68-3.81 |
.145-.150 |
HS145 |
|
Diameter Range 3.05-3.81 mm (.120"-.150") |
| |

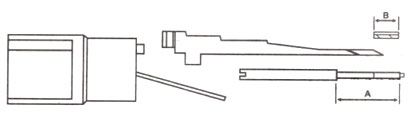

SHORT SERIES AA |
Mandrel
Length A=42 mm (1.65") Stone Length B 5 17.5 mm (.687") |
|
| |
|
| |
| 3.81-3.94 |
.150-.155 |
HS150 |
|
AA |
| 3.94-4.06 |
.155-.160 |
HS155 |
| 4.06-4.19 |
.160-.165 |
HS160 |
| 4.19-4.32 |
.165-.170 |
HS165 |
MA 156/22 |
| 4.32-4.45 |
.170-.175 |
HS170 |
A-4/6 |
| 4.45-4.57 |
.175-.180 |
HS175 |
|
| 4.57-4.70 |
.180-.185 |
HS180 |
|
| |
Diameter Range 3.81-4.70 mm (.150"-.180") |
Diameter mm |
Ins |
Mandrel Adaptor |
Stone
Types |
|

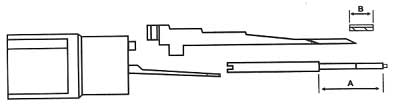

SHORT SERIES SH |
Mandrel
Length A=53 mm (2.08") Stone Length B = 19.05 mm (.750") |
|
 |
| 3.81-3.94 |
.150-.155 |
HS150/SH |
|
SH |
| 3.94-4.06 |
.155-.160 |
HS155/SH |
| 4.06-4.19 |
.160-.165 |
HS160/SH |
| 4.19-4.32 |
.165-.170 |
HS165/SH |
A-4/6 |
| 4.32-4.45 |
.170-.175 |
HS170/SH |
MA 156/22 |
| 4.45-4.57 |
.175-.180 |
HS175/SH |
|
| 4.57-4.70 |
.180-.185 |
HS180/SH |
|
| Diameter Range 4.70-6.10 mm (.185"-.240") |
| 4.70-4.83 |
.185-.190 |
HS185/2SH |
|
SH |
| 4.83-4.95 |
.190-.195 |
HS190/2SH |
| 4.95-5.08 |
.195-.200 |
HS195/2SH |
| 5.08-5.21 |
.200-.205 |
HS200/2SH |
A-4/6 |
| 5.21-5.33 |
.205-.210 |
HS205/2SH |
MA 156/1 |
| 5.33-5.46 |
.210.215 |
HS210/2SH |
|
| 5.46-5.59 |
.215-.220 |
HS215/2SH |
| 5.59-5.72 |
.220-.225 |
HS220/2SH |
| 5.72-5.84 |
.225-.230 |
HS225/2SH |
| 5.84-5.97 |
.230-.235 |
HS230/2SH |
| 5.97-6.10 |
.235-.240 |
HS235/2SH |
| 6.10-6.22 |
.240-.245 |
HS240/2SH |
|
| |
Diameter Range 3.81-4.70 mm (.150"-.180") |
Diameter mm |
Ins |
Mandrel Adaptor |
Stone
Types |
|

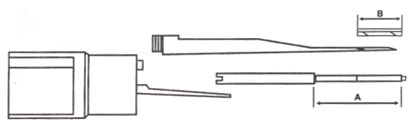

LONG SERIES NBB |
Mandrel
Length A=55 mm (2.16") Stone Length B = 31.7 mm (1.25") |
|
 |
| 3.81-3.94 |
.150-.155 |
HS150/NBB |
|
NBB |
| 3.94-4.06 |
.155-.160 |
HS155/NBB |
| 4.06-4.19 |
.160-.165 |
HS160/NBB |
| 4.19-4.32 |
.165-.170 |
HS165/NBB |
A-4/6 |
| 4.32-4.45 |
.170-.175 |
HS170/NBB |
MA 156/22 |
| 4.45-4.57 |
.175-.180 |
HS175/NBB |
|
| 4.57-4.70 |
.180-.185 |
HS180/NBB |
|
| |
| Diameter Range 4.70-6.10 mm (.185"-.240") |
| |
| 4.70-4.83 |
.185-.190 |
HS185/2NBB |
|
NBB |
| 4.83-4.95 |
.190-.195 |
HS190/2NBB |
| 4.95-5.08 |
.195-.200 |
HS195/2NBB |
| 5.08-5.21 |
.200-.205 |
HS200/2NBB |
A-4/6 |
| 5.21-5.33 |
.205-.210 |
HS205/2NBB |
MA 156/1 |
| 5.33-5.46 |
.210.215 |
HS210/2NBB |
|
| 5.46-5.59 |
.215-.220 |
HS215/2NBB |
| 5.59-5.72 |
.220-.225 |
HS220/2NBB |
| 5.72-5.84 |
.225-.230 |
HS225/2NBB |
| 5.84-5.97 |
.230-.235 |
HS230/2NBB |
| 5.97-6.10 |
.235-.240 |
HS235/2NBB |
| 6.10-6.22 |
.240-.245 |
HS240/2NBB |
|
|
| ----------------------------------------------------------------------------------------------------------- |
|
| |
