All Purpose Honing Machines

Technical Specification :ty
Bore dia 3 mm to 63 mm
Bore Length 200mm
Speed
100 to 2000 rpm or 250 to 1000 rpm
infinitely variable
Power
0.5 HP 3 ph - 1440 rpm - Main motor
0.1 HP 3ph - 2800 rpm - Coolant pump
Accuracy
Tapper and Ovality
within 0.003 mm max or less.
Std Accessories
Coolant tank with pump, Coolant pipe with cock, tray, filter mat, Magnet roll, Alankeys 4 Nos, Spanner 3 nos, Diamond file Chuck guard, Torque rod Assembly etc.

Magnetic Coolant separator
Lubrication System.
Machine lamp
Universal fixture for Odd shaped components
Honilo - 480 or Honicut 70 - 35 ltr
Honing tools at extra cost as per tools price list.

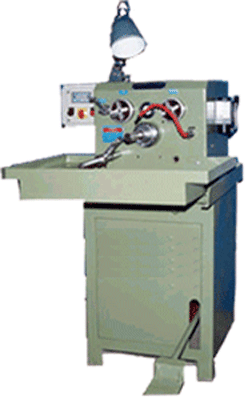

M-3-63 VS All Purpose Honing Machines
