Preci Tech Hard Steel Mandrels

Diameter Range 25.4 - 66.68 mm (1.00"-2.625")

Diameter mm

Ins
Mandrel
Adaptor
Stone Types

SHORT SERIES

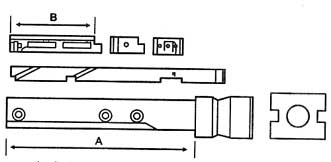

MANDREL LENGTH A = 152 mm (5.98") STONE LENGTH B =1x 82.5 mm (3.25")


Hard Steel Mandrels, Preci Tech Hard Steel Mandrels, Blind Hole Hard Steel Mandrels, Lapping Machine, Mumbai, India

25.4 - 28.57 1.000 - 1.125 PT1000/6
28.57 - 31.75 1.125 - 1.250 PT1125/6
31.75 - 34.93 1.150 - 1.375 PT1250/6
34.93 - 38.10 1.375 - 1.500 PT1375/6
38.10 - 41.28 1.500 - 1.625 PT1500/6
41.28 - 44.45 1.625 - 1.750 PT1625/6
44.45 - 47.63 1.750 - 1.875 PT1750/6
47.63 - 50.80 1.875 - 2.000 PT1875/6
50.80 - 53.98 2.000 - 2.125 PT2000/6
53.98 - 57.15 2.125 - 2.250 PT2125/6
57.15 - 60.33 2.250 - 2.375 PT2250/6
60.33 - 63.50 2.375 - 2.500 PT2375/6
63.50 - 66.68 2.500 - 2.625 PT2500/6

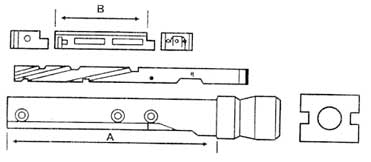

Blind Hole Hard Steel Mandrels
Mandrel Length A= 180 mm Stone Length B=82.5 mm (3)
Preci Tech Hard Steel Mandrels

To convert to mandrel for blind hole use.
When honing any blind hole the stone must be flush with the end of the mandrel.

The range of mandrels listed above can be converted for blind hole use simply by changing the expansion wedge and stoneholder type and front and rear stops.

Use F2 type stoneholders mounted with the appropriate stone grade. Move the front stop from the first hole at the front the mandrel to the second hole in the mandrel hole.

Move the rear stop to the last hole in the mandrel body.
-----------------------------------------------------------------------------------------------------------
